YBD110-6 Computerized large rotary shuttle multi-needle quilting machine

FOB Reference Price:Get Latest Price
US $10,000-30,000 / Set | 1 Set/Sets bed sheet machine (Min. Order)
Supply Ability:
100 Set/Sets per Month bed sheet machine
Port:
ShenZhen, China
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
EBD
Model Number:
YBD110-6
Max Sewing Speed:
650R.P.M--700R.P.M
Max Sewing Thickness:
6mm
Number of Head:
Single Head
Moving Style:
Head Moved
Voltage:
AC220/380V;2&3Phases;50Hz
Power(W):
5.5kw
Dimension(L*W*H):
5150x1380x2050(mm)
Weight:
2000kg-3000kg
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Model::
YBD110-6Needles
X Area::
310mm
Stitch Distance::
1mm~12.7mm
Needle Type ::
9#~16#
Working Width ::
2794mm
Sewing Speed ::
600R.P.M~700R.P.M
Rated Voltage ::
AC220/380V,50Hz
Power ::
5.5kw
Machine Size ::
L5150*W1380*H2050(mm
Packaging & Delivery
Packaging Details
Aautomatic bed sheet needle punching machine ;
export standard packing
Delivery Time
within 35 days after receive the deposit



  Model:                   YBD110-6Needles
  Area:                    310mm
  Stitch Distance:       1mm~12.7mm
  Needle Type :          9#~16#
  Working Width :     2794mm
  Sewing Speed :       600R.P.M~700R.P.M
  Rated Voltage :       AC220/380V,50Hz
  Power :                    5.5kw
  Machine Size :        L5150*W1380*H2050(mm)


.The machine adopted large rotary hook that can make neat stitches and with lower noise, and effectively reduced defects such as miss stitches, loose stitches, coarse stitches, etc.
.Quilt&embroidery completed simutaneously.
.Function of independent patterns interval quilting, adopting Tensile Motor to keep the fabric smooth at the inlet and outlet fabrics.

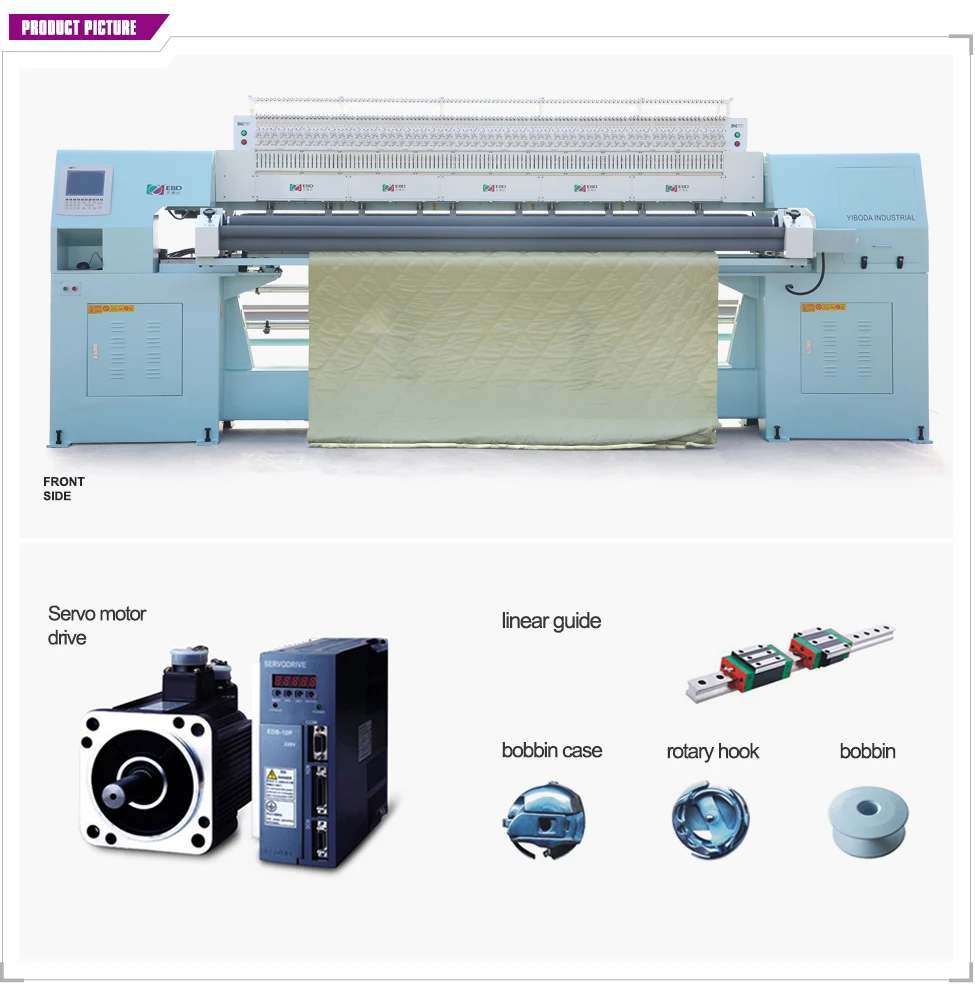

.Main axis and XY axis are all adopted the Servo Motor.
.Function of under and upper thread auto detector, red light displayed on the thread broken position.
.Function of edit patterns on the equipment directly, and convenient to read the embroidery format.
.Stitches between 1mm-12.7mm adjustable, Sewing Speed: 600-700/R.P.M.
.Safe operation display of quilting and embroidery; Automatic needle run-up and
orientantion brake system.
.Function of pattern patch-up, can efficiently solve the distorted patterns when quilting the thick materials.
.Prepared plenty patterns for your choice.
