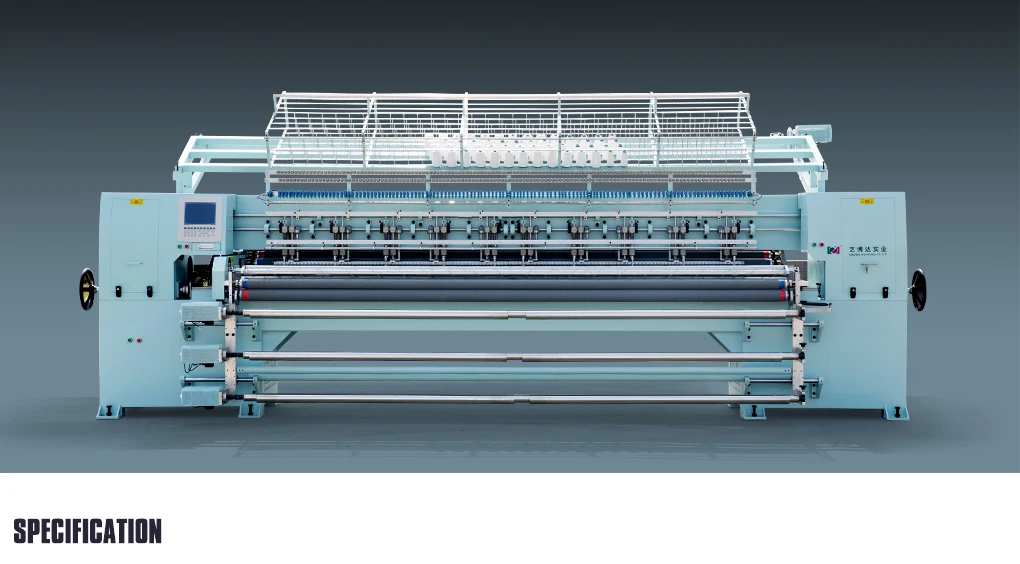

YBD128'3 Lock Stitch Multi Needle Quilting Machine

FOB Reference Price:Get Latest Price
US $8,000-30,000 / Sets | 1 Set/Sets multi neddle quilting machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
EBD
Model Number:
128-3 Needle bar
Max Sewing Speed:
3251mm
Max Sewing Thickness:
3mm
Number of Head:
customize
Moving Style:
Head Moved
Voltage:
AC380V
Power(W):
3.5kw
Dimension(L*W*H):
L5700*W1300*H1700(mm)
Weight:
2000kg-3000kg
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Model::
128"3 Needle
Working Width::
3251mm
X Area::
305mm
Sewing Speed::
400~500n/m
Quilting Design::
360°
Rated Voltage::
AC380V
Voltage Deviation::
±4%
Power::
5.2kw
Machine Size::
L5700*W1300*H1700(mm)
Supply Ability
Supply Ability:
100 Set/Sets per Month multi neddle quilting machine
Packaging & Delivery
Packaging Details
Lock Stitch Multi Neddle Quilting Machine
export standard packing
Port
ShenZhen, China
Lead Time :
within 35 days after receive the deposit




  Model:        128"3 Needle
  Working Width  3251mm
  X Area:     305mm
  Sewing Speed:        400~500n/m
  Quilting Design:  360°
  Rated Voltage:  AC380V
  Voltage Deviation:  ±4%
  Power:    5.2kw
  Machine Size:

  L5700*W1300*H1700(mm)


.jpg

.Adopting digital control program.

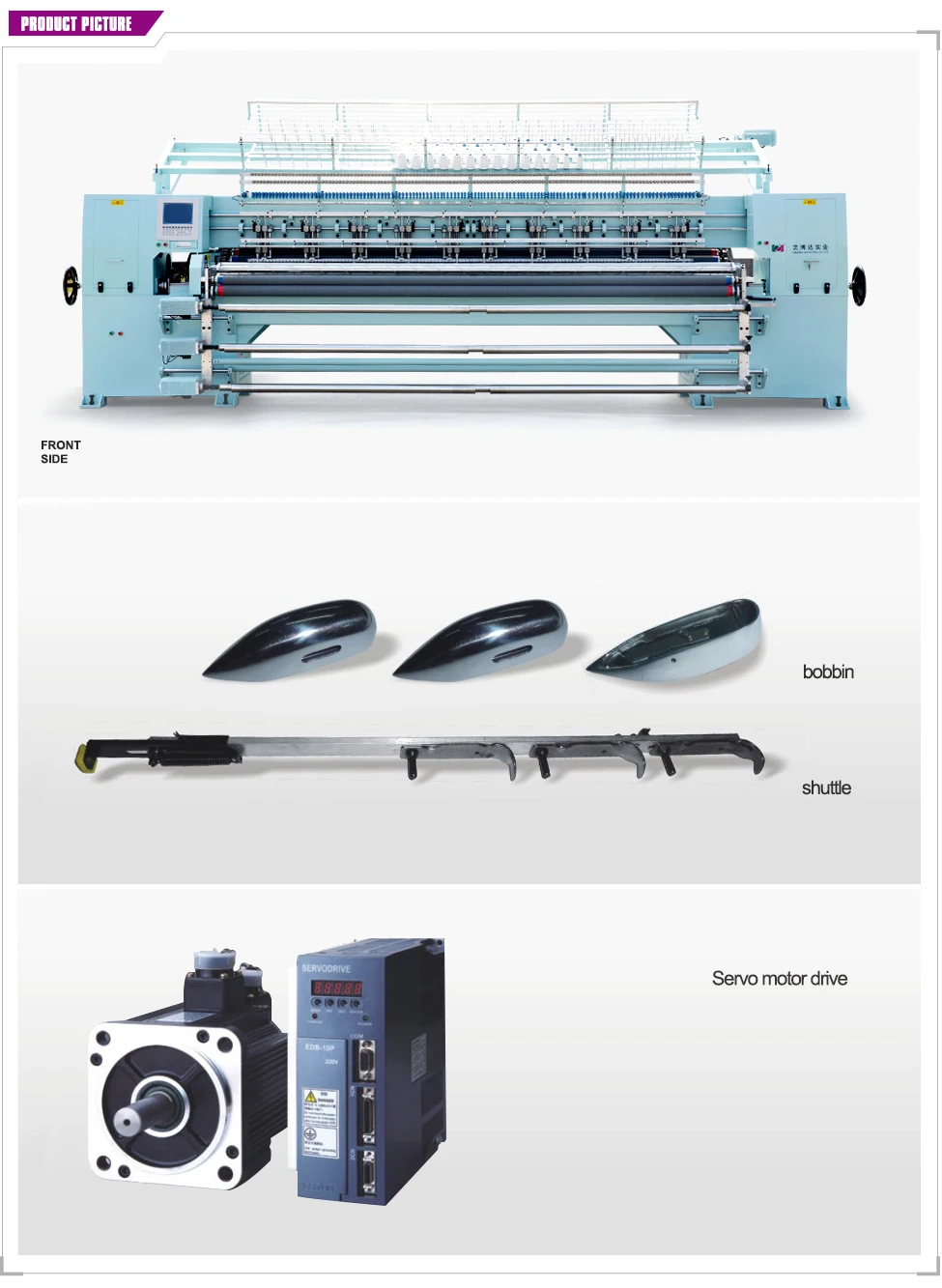

.X/Y axis by Servo Motor.

.The main axis by Panasonic FCM (Frequency Conversion Motor).

.Prepared some quilting patterns for your choice.

.Easy and quick editing of patterns.

.360°random quilting.

.Function to quilt independent patterns.

.On-line help on operation.

.Speed with 500R.P.M;stitches between 2-6mm adjustable.

.Function of pattern patch-up, can efficiently solve the distorted patterns when quilting the thick materials.

.Simulation display of quilting.

.Automatic needle run-up and orientation brake system.

.Auto-stopping function once thread broken(optional).

.Safe operation under the protector of lnfrared Sensors.

.Adopting the Tensile Motor to control the precision for the quilting  Patterns (optional).
