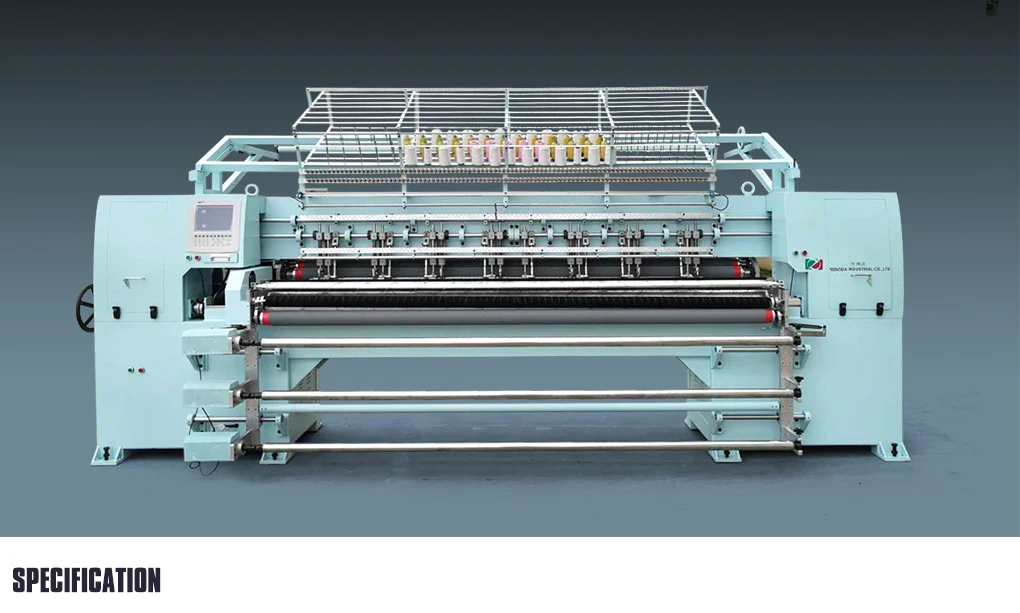

YBD94-2 needle Computerized Multi Needle Quilting Machines for sleeping bags

FOB Reference Price:Get Latest Price
US $8,000-30,000 / Sets | 1 Set/Sets quilting embroidery machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
EBD
Model Number:
YBD94-2Needles
Max Sewing Speed:
400-550n/m
Max Sewing Thickness:
≤3mm
Number of Head:
Single Head
Moving Style:
Head Moved
Voltage:
AC380V
Power(W):
4.5kw
Dimension(L*W*H):
L4800*W1300*H1700(mm)
Weight:
2000kg-3000kg
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Model::
YBD94-2 Needles
Working Width::
2438mm
X Area::
250mm
Sewing Speed::
400~550n/m
Quilting Design::
360°
Rated Voltage::
AC380V
Voltage Deviation::
±4%
Power::
4.5kw
Machine Size::
L4800*W1300*H1700(mm)
SupplyAbility
SupplyAbility:
Set/Sets per Month quilting embroidery machine
Packaging & Delivery
Packaging Details
quilting embroidery machine for baseball cap:
export standard packing
Port
ShenZhen, China
Lead Time :
30 days



  Model:        94-2 Needles
  Working Width  2438mm
  X Area:     250mm
  Sewing Speed:        400~550n/m
  Quilting Design:  360°
  Rated Voltage:  AC380V
  Voltage Deviation:  ±4%
  Power:    4.5kw
  Machine Size: L4800*W1300*H1700(mm)


.Adopting digital control program.

.X/Y axis by Servo Motor.

.The main axis by Panasonic FCM (Frequency Conversion Motor).

.Prepared some quilting patterns for your choice.

.Easy and quick editing of patterns.

.360°random quilting.

.Function to quilt independent patterns.

.On-line help on operation.

.Speed with 550R.P.M;stitches between 2-6mm adjustable.

.Function of pattern patch-up, can efficiently solve the distorted patterns when quilting the thick materials.

.Simulation display of quilting.

.Automatic needle run-up and orientation brake system.

.Auto-stopping function once thread broken(optional).

.Safe operation under the protector of lnfrared Sensors.

.Adopting the Tensile Motor to control the precision for the quilting Patterns (optional).
